Powerlink Cable - MK2 - Black - Male to RJ45 - 3 m
Powerlink Cable - MK2 - Black - Male to RJ45 - 3 m
Couldn't load pickup availability
B&O powerlink cable with DIN 8 pin and RJ45

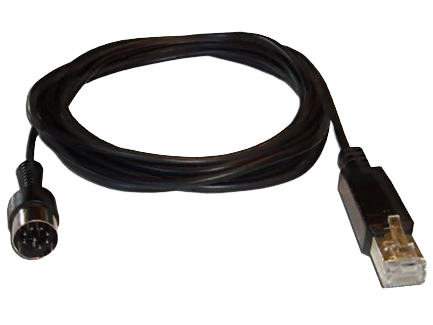

Powerlink cable in black with a length of 3 meters with DIN 8 pole Male plug for RJ45 - the cable is a Mk2 type.
The Power Link cable is used to connect B&O systems together with primarily loudspeakers.
Data on DIN 8 to RJ45 cable
- The cable is 3 meters long
- DIN 8 pin male connector at one end and RJ45 connector at the other end.
- The cable has 8 internal wires with a shield around it. See more below
- The color is black.
Read details about the cable here
Technical details of DIN 8 to RJ45 power link cable
Powerlink cable model 2 (Mk II or Mk 2)
The cable contains 8 wires, of which 2 pairs are pair-twisted and shielded (right and left channel, 1 wire is shielded (data traffic) and one wire for Overload signal. The entire cable is shielded in one.
The cable is typically used for speakers with a display. These are B&O speakers, such as BeoLab 3000, BeoLab 4500, BeoLab 5000, Penta MK II and Penta MK III.
The cable is also used for amplifiers, such as the ML/MCL Converter and BeoLink Passive.
The above speakers and amplifiers must use specific wires in cable. Pin 6 on the connector is a Data pin, which is required to be able to use the display on the speaker. Pin 1 of the connector is on / off the speaker and finally pin 8 is detection of overload on the amplifiers.
