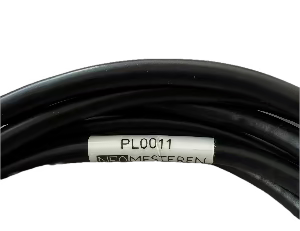

B&O powerlink cable with DIN 8 pin and RJ45

Powerlink cable in black with a length of 3 meters with DIN 8 pin male connector to RJ45 - the cable is a Mk2 type.

The power link cable is used to connect B&O systems with Neo products - such as Neo 7, Neo TV, and Neo Radio.

Data on DIN 8 to RJ45 cable

• The cable is 3 meters long.
• DIN 8 pin Han connector on one end and RJ45 connector on the other end.
• The cable has 8 internal wires with a shield around it. See more below.
• The color is black.
• The cable is produced by Neomesteren and complies with the B&O specification.
• Enforces the RoHS directive in the EU

Read details about the cable here

Technical details about DIN 8 to RJ45 power link cable

Powerlink cable contains 8 wires, of which 2 pairs are twisted pair and shielded (right and left channel, 1 wire is shielded (data traffic) and one wire for Overload signal. The entire cable is shielded as one.

The cable is also used for speakers with a display. These are B&O speakers such as BeoLab 3000, BeoLab 4500, BeoLab 5000, Penta MK II, and Penta MK III.

The cable is also used for amplifiers, such as ML/MCL Converter and BeoLink Passive.

The above speakers and amplifiers must use specific wires in the cable. Pin 6 on the connector is a Data pin, which is required to use the display on the speaker. Pin 1 on the connector is the power on/off for the speaker, and finally, pin 8 is overload detection on the amplifiers.
