Neo Hub Basic – For B&O BeoLab speakers between TV and music system

Neo Hub Basic makes it possible to use one set of B&O BeoLab speakers with two different audio sources.

For example, this could be a modern TV via Neo 7, while the speakers are also used for a B&O music system such as BeoSound, Beomaster, or Beocenter.

Many B&O installations include both a TV and a music system, but BeoLab speakers usually have only one Powerlink connection.

Neo Hub Basic solves this by automatically sharing the speakers between two audio sources.

When one of the sources starts sending audio, Neo Hub Basic detects the signal and automatically selects the active source. Therefore, there is no manual switching, and the system works completely transparently in daily use.

Neo Hub Basic is specifically developed for Bang & Olufsen Powerlink systems, enabling integration of both classic and modern B&O products in the same setup.

Typical uses

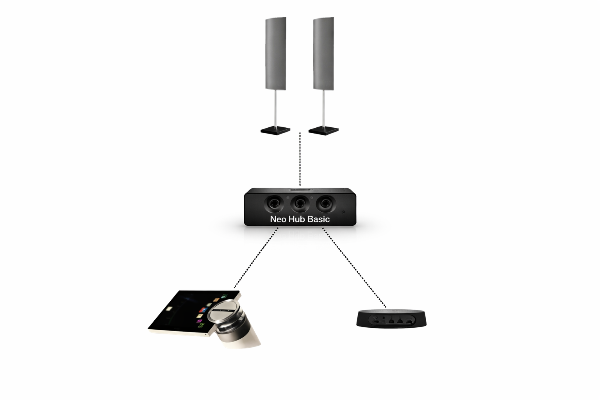

• Use BeoLab speakers for both TV and music system
• Share speakers between Neo 7, Neo TV, Neo 10, and a B&O music system
• Integrate modern TV with classic B&O products
• Share speakers between two Bang & Olufsen devices

Features

• Automatic selection of active audio source
• No manual switching
• Designed for B&O Powerlink
• Stable and noise-free signal handling
• Compact installation

Specifications

• 2 × Powerlink input (DIN 8-pin)
• 1 × Powerlink output (DIN 8-pin)
• Automatic signal detection
• Compatible with BeoLab speakers
